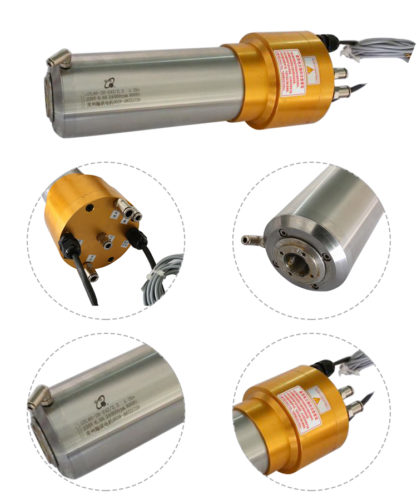

| Model | GDL80-20-24Z/2.2 |
| Voltage | 220 V |
| Power | 2.2 kw |
| Current | 7.6 A |
| Torque | 0.72Nm |
| Frequency | 800 Hz |
| Rotating speed | 24000 rpm |
| Cooling | Water cooling |
| Lubrication | Grease |
| Bearing No. | 2*HY6005C/P4,1*SM6004C/P4 |
| Pole number | 4P |
| Phase number | 3 |
| Rotating direction | Rotate anticlockwise from the shaft extension end |
| Tool holder | IS020 (Parfaite is recommended) |
| Blind rivet | IS020-15° (Parfaite is recommended) |
| Weight | 8 KG |

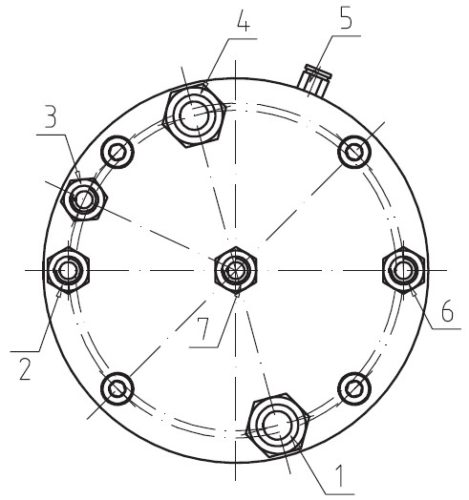

1: Power line: Three-color lines connected with U, V and W phases/ yellow and green wires grounded Temperature control line 110°C thermistor two-phase connected with the temperature-control protector 2: Cooling water feed: Pump lift 8m 3: Pole change and dust removal pressure: 0.2-0,3Mpa (6/4 hoses) 4: Quantity of proximity switches: Pole hanging and pole discharge NPN (normally open) N.O. Wiring method of the proximity switch: Brown wire connected with +24VDC blue wire connected with 0VDC Signal load end connected with +24VDC/the other end connected with the black wire 5: Air seal pressure: 0.1-0.2Mpa (4/2 hoses) 6: Cooling water yielding: (2 and 6 ends terminated with 8/6 hoses) 7: Air inlet pressure of the cylinder: 0.65Mpa (6/4 hoses))
| PTC single-core thermistor parameter | |
| DC power supply | Maximum DC25V/100mA |
| ‘-20~25℃ | ≤300Ω |
| ≤90℃ | ≤750Ω |
| 105℃ | ≤1650Ω |
| 110℃ | Rated operating temperature |
| 115℃ | ≤3990Ω |
| ≥125℃ | ≤12KΩ |
| ≤160℃ | Maximum storage temperature |
Special warning:

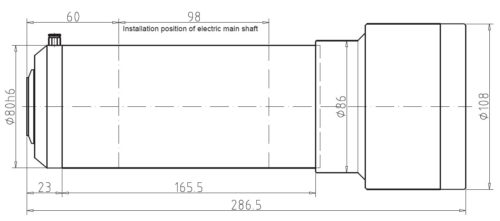

- The electric main shaft shall be installed at the clamped position; otherwise, the bearing will be easily damaged!
- The main shaft shall entirely stop before the tool changing. The manual tool changing button shall not act during the rotation of the shaft; otherwise, it will easily result in the seizure of the shaft!
- The compressed air shall be clean and dry, and the filter accuracy shall be 0.1micron! Air seal is normally open. It is recommended to use the two-level filter, and the filter accuracy is 0.5 micron/ 0.1 micron respectively. The air filter is installed with the self-discharge device.
